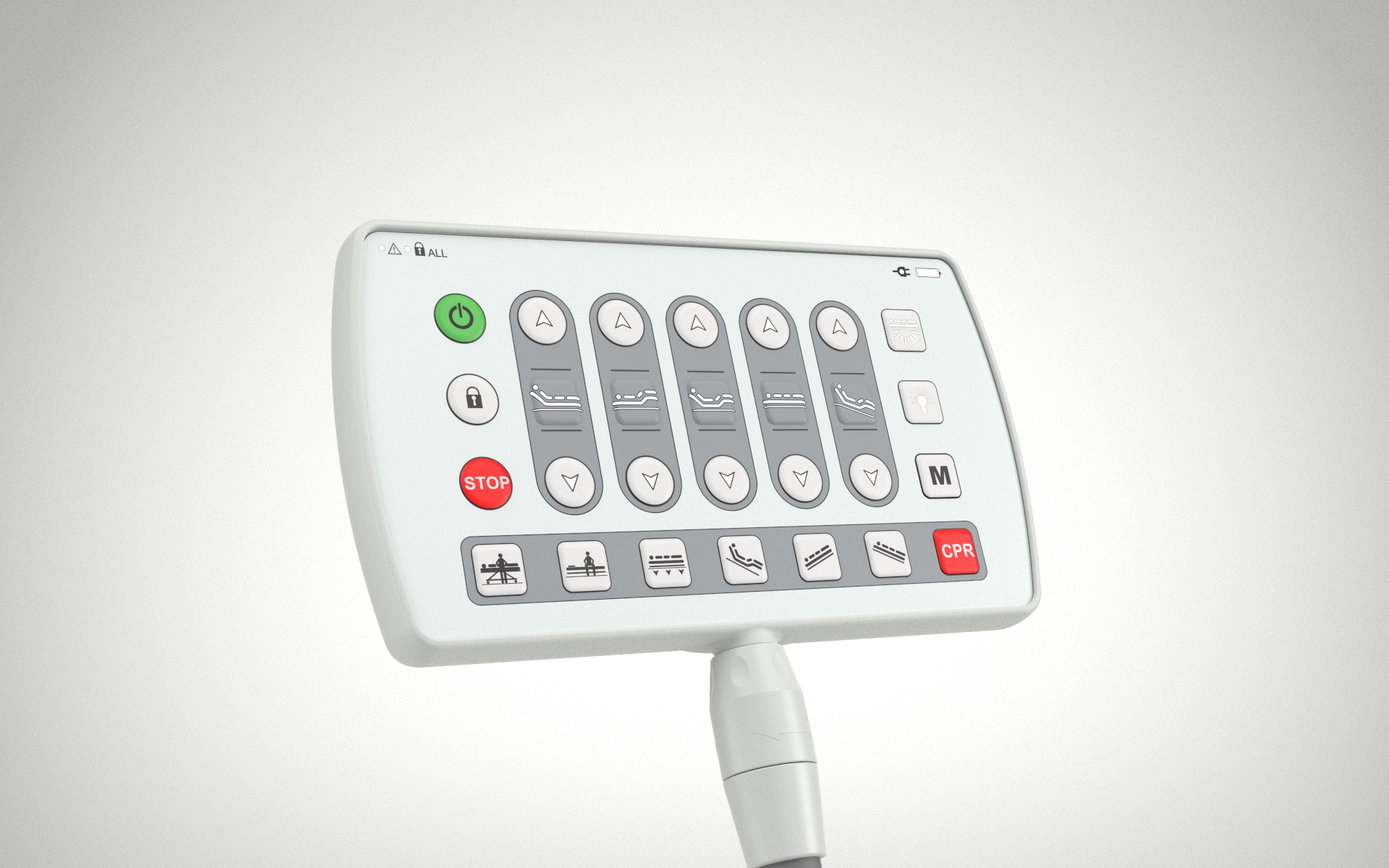

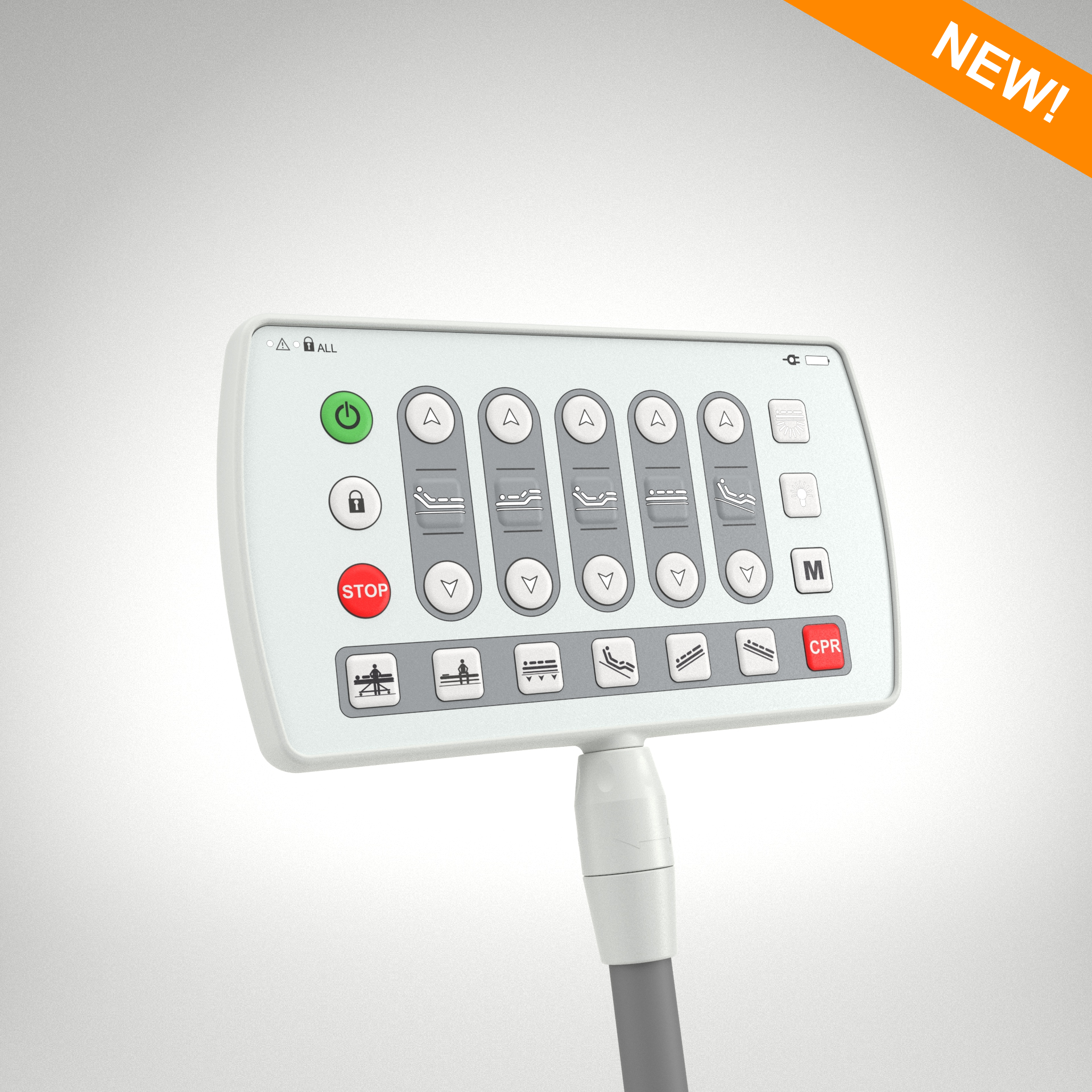

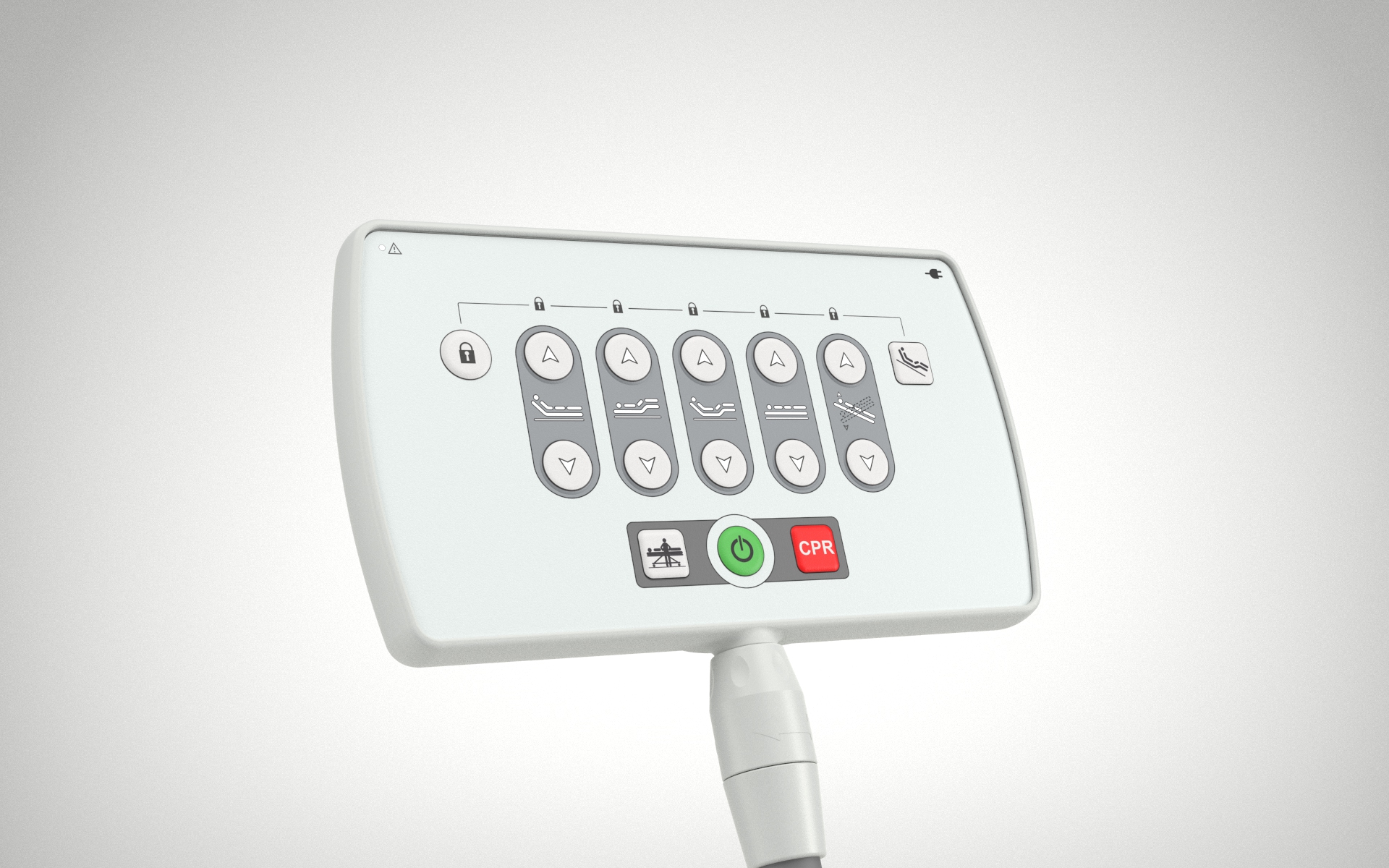

ilcoControl IN – Nurse control

With its fully customizable and smooth foil keypad, rounded corners and protection class IP66 the ilcoControl IN offers option for hospital and nursing care bed manufacturers to complete their system with additional features. With our new ICS3 control system we could handle several situations such as setting master and slave controllers, lock functionality of other controllers from nurse control, create memory functions and functions with double press or multiple buttons pressed simultaniously.

Fully certified to DIN EN 60601-1 ed. 3.1 at UL, the handsets underlines ilcon’s dedication to medical applications.

Main features/options:

  • Up to 28 fully customizable buttons and 21 LEDs
  • Movement sensor
  • Leds for battery status, locking status, system status
  • Function lockout: lockout per button, function or button groups, complete, or fully locked => customizable on demand
  • Lockout either by Special/security key on the back side, with button combination

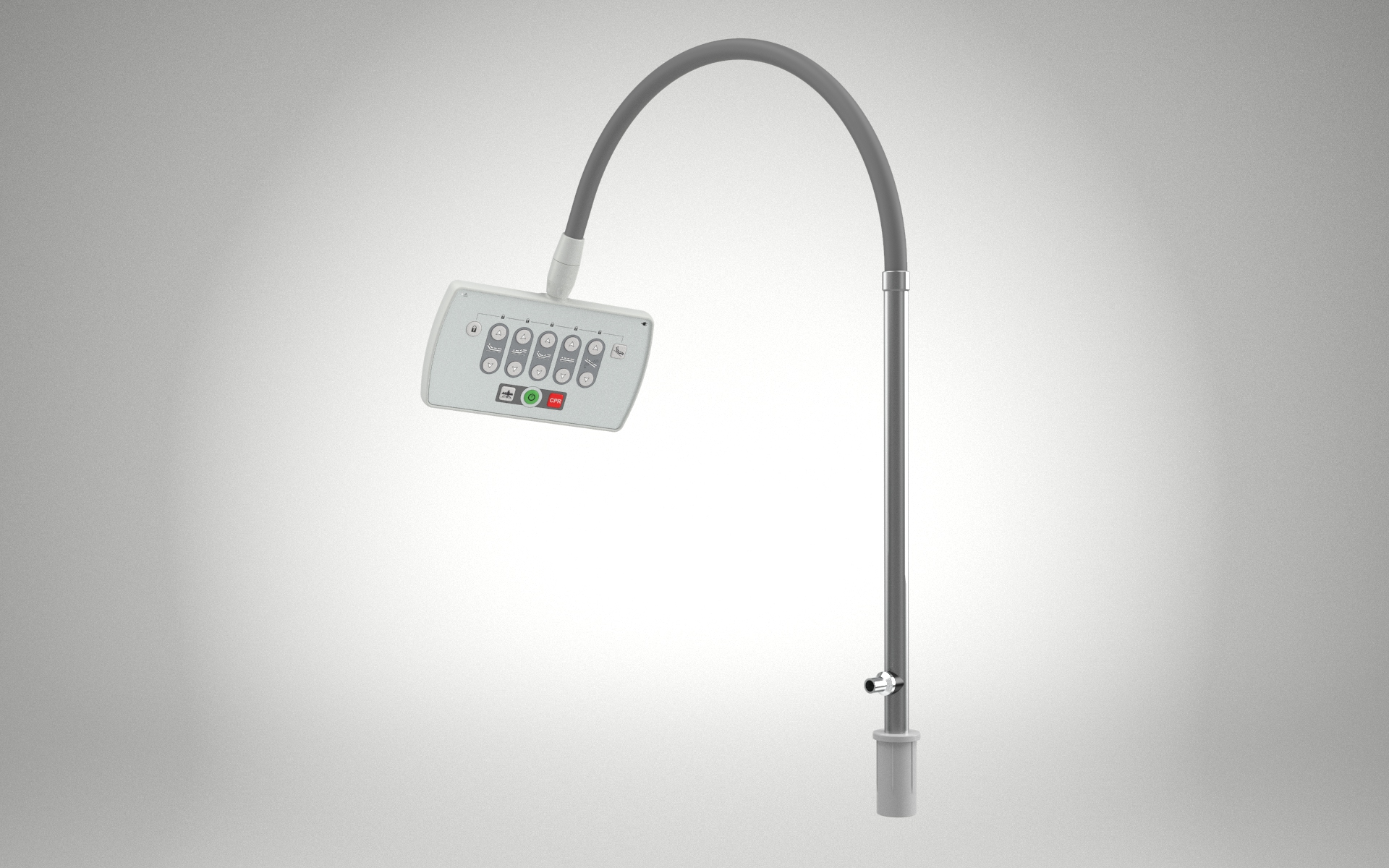

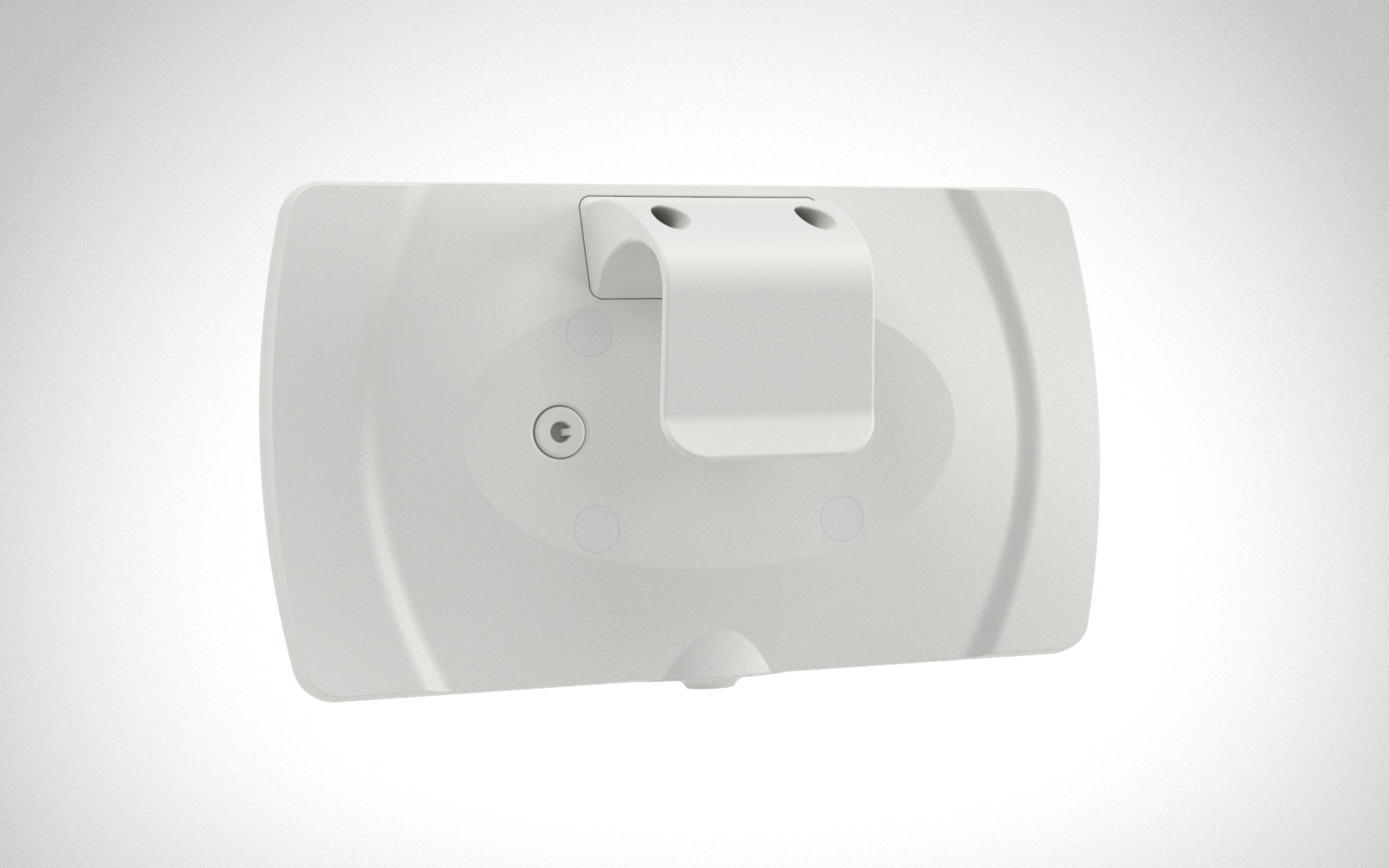

  • Hook and flexible hook (“gooseneck”) options to attach to you bed
  • Protection class: IP66
  • Color is standard RAL 7035 ( light grey)
  • front foil is fully customizable with custom buttons, LEDs, positions, colors and graphic
